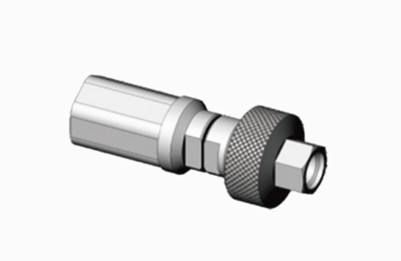

K Series 2.92 Milimetere Wave Stainless Steel RF Connector for MF363A Cable
|
Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
Λεπτομερής Περιγραφή Προϊόντος
| Τύπος: | 2.92mm, τύπου Κ, SMK | Κλειδιά: | Πυροσβεστική πανοπλία |
|---|---|---|---|
| Item: | Millimeter Wave Connectors | ΠΑΡΑΡΤΗΣΗ: | Ατσάλι ατσάλι |
| Εφαρμογή: | RF/Satcom | Απομονωτής: | ΠΤΦΕ |
| Impedence: | 50Ohm | Φύλο: | Άντρας |
| Επισημαίνω: | MF363A Σύνδεσμος καλωδίου RF,2Συνδέτης ραδιοκυμάτων χιλιοστών.92,Συνδετήρας RF από ανοξείδωτο χάλυβα της σειράς Κ |
||

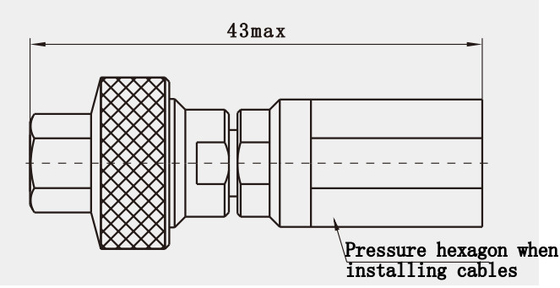

K Series 2.92 Milimetere Wave Stainless Steel RF Connector for MF363A Cable
The K-type, also known as the 2.92 type connector, belongs to a series of products that are frequently utilized millimeter wave connectors. These connectors can operate at frequencies up to 40 GHz and are designed to be interchangeable with SMA series and 3.5 mm series products, utilizing an air interface. They are characterized by their small size, lightweight construction, high-frequency capabilities, and reliable connections.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
|
Part Number
|
Description
|
|
K-KFD21
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD87G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD42
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD61G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
Features:
1. Premium material: Manufactured from high-quality stainless steel, ensuring excellent mechanical strength and corrosion resistance.
2. High-frequency performance: Designed for millimeter wave frequencies, supporting up to 40 GHz, suitable for high-frequency communication applications.
3. Reliable connectivity: Offers superior electrical performance, providing stable and reliable signal transmission.
4. Interchangeability and compatibility: Compatible with SMA series and 3.5mm series products, utilizing an air interface for interchangeability.
Application:
1. Satellite Communications: Transmitting signals between ground stations and satellites, requiring high-frequency performance and reliability.
2. Radar Systems: Used in civilian radar systems for signal transmission.
3. Wireless Communications: This includes links between base stations as well as backhaul applications in the millimeter wave band.
4. Test and Measurement Equipment: Precision connections in high-frequency test instruments such as network analyzers and spectrum analyzers.
